Product Dimensions 8"h x 15.75"w x 8.75"d

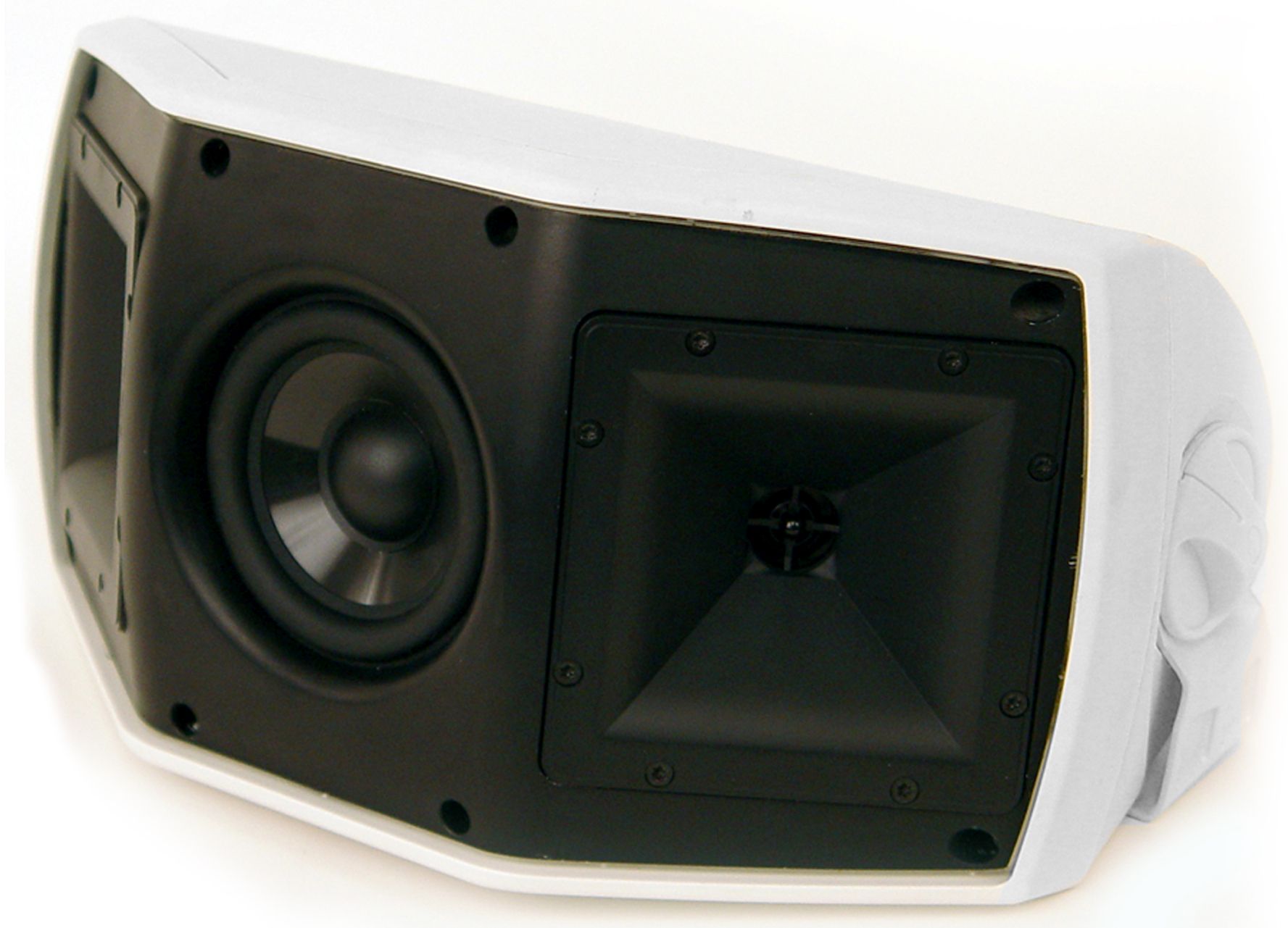

Easy to integrate into almost any outdoor environment, the AW-500-SM selectable mono/stereo wide-coverage model brings powerful and dynamic Klipsch sound to a wide variety of challenging installation locations.Read More
Very high sensitivity and power handling
3/8"-16 threaded insert for optional mounts
Paintable UV-resistant ABS enclosure with rustproof aluminum grille
Dual 90 degree x 90 degree Tractrix® Horn tweeters for clean clear highs
Supplied with C-style mounting bracket and stainless steel hardware
Perfect for small outdoor areas that cannot accommodate multiple speakers, the AW-500-SM can bring smooth and even coverage to larger areas when combined with several other identical models.
Just like our indoor products, the AW-500-SM employs a 5-inch IMG woofer and dual 1-inch titanium dome tweeters so that it can play both left and right stereo signals with total precision and clarity.
General Specs | |
| Product Weight (lbs.) | 10 |
| Frequency Response | 80Hz-20kHz ± 3dB |
| Enclosure Material | ABS |
| RMS Power Handling (Watts) | 300 |
| Height (cm.) | 20.3 |
| Depth (cm.) | 22.2 |
| Width (cm) | 40 |
| Product Weight (kg) | 4.54 |
| Color | White |
| Enclosure Type | Sealed |
| Impedance | 8 ohms |
| Number of Speakers | 1 |
| Sensitivity | 94dB @ 1 watt/1 meter |
| Depth (in.) | 8.75 |
| Height (in.) | 8 |
| Width (in.) | 15.75 |
General | |
| Power Handling | 75W (300 watts peak) |
| Drive Components | Two-way system using two 1" (2.54cm) polymer dome tweeters with two 90˚x 90˚ Tractrix® Horns and one 5" (12.7cm) IMG woofer |
| Wire Gauge Accommodated | 12 |
| Weight | 10 lbs. (4.54kg) |
| Height | 8" (20.32cm) |
| Width | 15.75" (40cm) |
| Depth | 8.75" (22.23cm) |
| Finish | White enclosure and grille |
