Product Dimensions 9.2"h x 9.2"w x 4.5"d
Featuring the Klipsch® Signature Horn-Loaded performance at an incredible value, the DS-160CDT features a 6.5” Polypropylene woofer and a 1” Pivot Silk Dome tweeter mated to a round Tractrix® horn for dynamic acoustic performance.Read More
6.5” polypropylene woofer
1” pivot silk dome tweeter
Patented Sky Hook™ cinch by swarm installation system
Bezel-free magnetic grille
Using the same Tractrix® horn technology and design principles of our premium architectural and box speaker lines, the all new Klipsch Designer series brings true Klipsch power and performance. With a 6.5” Polypropylene woofer and a 1” Silk Dome tweeter mated to a round Tractrix® horn, the DS-160CDT brings dynamic, powerful, detailed Klipsch sound to your distributed audio, home theater, or 2-channel system.
The exclusive installation system engages the dog legs automatically when the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of overtorquing. This fast, easy installation system reduces install time by up to 75%.
CDT technology allows for the tweeter and the woofer to be aimed up to 15° in any direction, helping to ensure on-axis frequency response at almost any listening position.

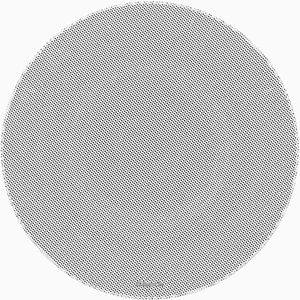

A completely redesigned powercoated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.
General Specs | |
| Product Weight (lbs.) | 7 |
| Frequency Response | 77Hz - 20kHz |
| Enclosure Material | ABS |
| Color Finish Name | White |
| Collection | Designer Series |
| RMS Power Handling (Watts) | 200 |
| Height (cm.) | 23.3 |
| Depth (cm.) | 11.4 |
| Width (cm) | 23.3 |
| Product Weight (kg) | 3.18 |
| Color | White |
| Enclosure Type | Infinite Baffle |
| Impedance | 8 ohms |
| Sensitivity | 91 |
| Speaker Type | In-Wall Speakers |
| Depth (in.) | 4.5 |
| Height (in.) | 9.2 |
| Width (in.) | 9.2 |
