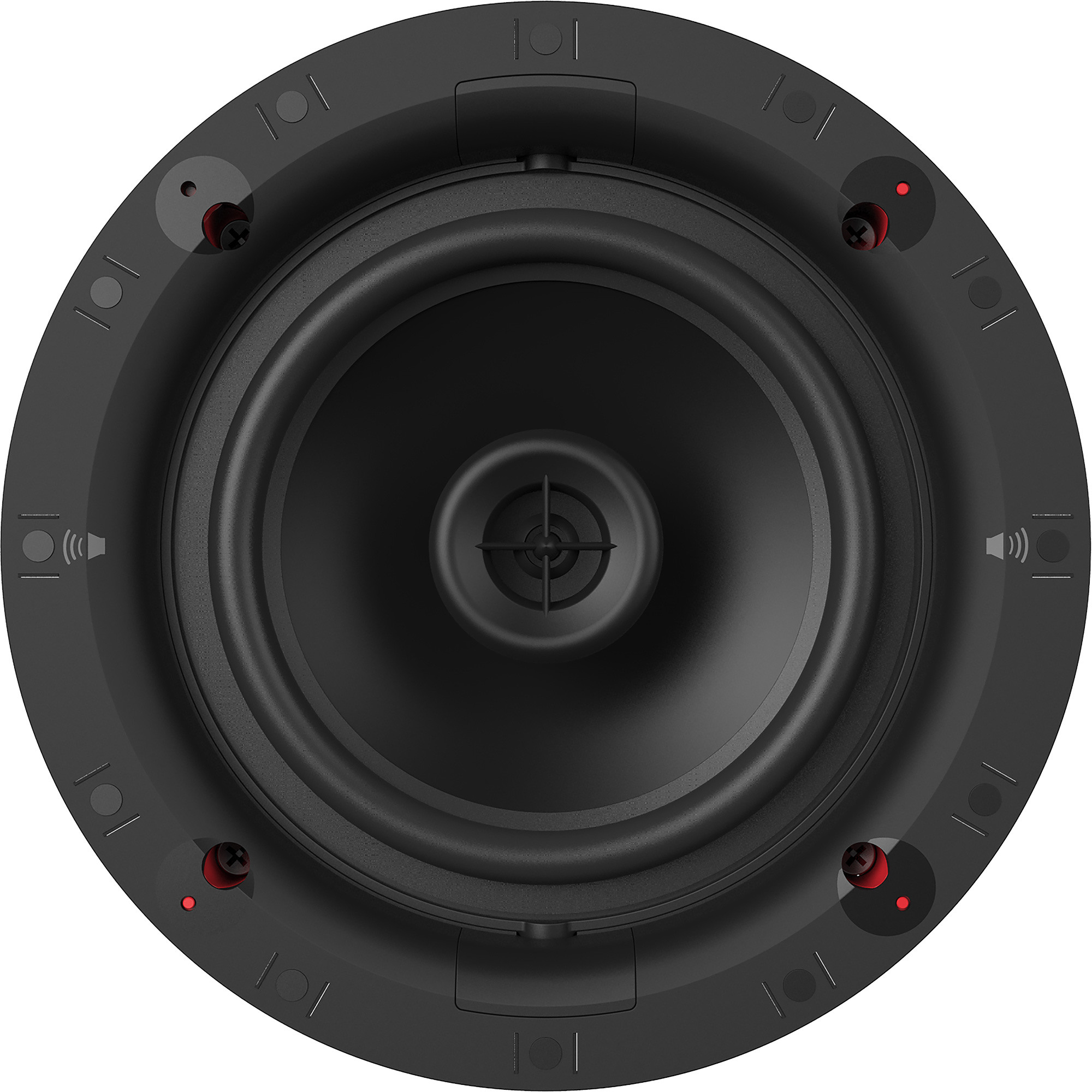

Klipsch® Designer Series DS-180CDT 8" In-Ceiling Speaker

Klipsch

Model #:

1064167

At a Glance

Get the Klipsch® Signature Horn-Loaded performance at an incredible value, the DS-180CDT features a 8” Polypropylene woofer and a 1” Pivot Silk Dome tweeter mated to a round Tractrix® horn for dynamic acoustic performance. Utilizing Klipsch Patent-Pending SkyHook™ Tool-Free Installation System, your install time is reduced by 75%.Read More

Visit Store For Details
$269.00

Get to know this product.

Product Overview

Product Overview

8” Polypropylene woofer

1” Pivot Silk Dome tweeter

Patent-Pending SkyHook™ Tool-Free Installation System

Bezel-Free Magnetic Grille

Flat Paintable Magnetic Grille Included

SkyHook™ Tool-Free Installation System

The exclusive installation system by Swarm technology engages the dog legs automatically when the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of overtorquing. This fast, easy installation system reduces install time by up to 75%.

All New, Bezel-Free Magnetic Grille

A completely redesigned powercoated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.

Horn-Loaded Performance

Get crystal clear sound with minimal effort through Klipsch signature horn-loaded speakers. We've been perfecting the art of horn-loaded audio since 1946.

Useful Documents
Manual
Specification Sheet
Brochure
Specifications

General Specs

Product Weight (lbs.)7.4
Color Finish NameBlack
RMS Power Handling (Watts)200
Product Weight (kg)3.35
ColorBlack
Impedance8 ohms
Number of Speakers1

General

Frequency Range73Hz - 20kHz +/- 3dB
High Frequency Driver1" (2.54cm) Silk Dome Tweeter mated to a round Tractrix® Horn
Low Frequency Driver8" (20.32cm) Polypropylene Woofer
Sensitivity94 dB @ 2.83V / 1m
Coverage Angle100°
Power Handling50W RMS / 200W RMS
Impedance8 Ohm Compatible
Enclosure TypeABS/Infinite Baffle
FinishBlack Baffle/Frame, White Paintable Grille
Product Dimensions10.75” W x 10.75” H x 4.5” D (27.3cm H x 27.3cm W x 11.5cm D)
Mounting Depth4.45” (11.3cm)
Included In BoxFlat Paintable Magnetic Grille
Installation KitIK-800-C II (Sold Separately)
Fire Rated EnclosureME-800-C (Sold Separately)
Built From2017
