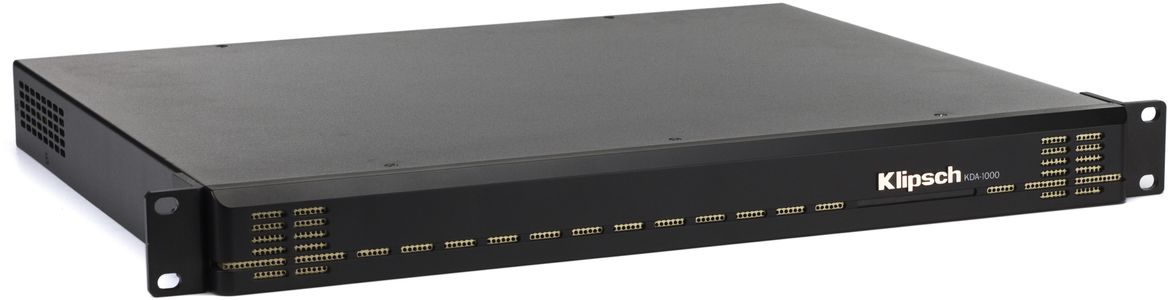

For outdoor systems requiring more output, the Klipsch® KDA-1000 DSP Amplifier powers larger arrangements to deliver incredible performance from a 1000W, single-rack unit solution - all completely customizable through the web-based DSP menu.Read More
1000W Total System Power (4 x 250W)
High performance power platform
70V / 100V / Low Impedance Compatibility
Flexible I/O
State-of-the-art DSP control and set-up
The Klipsch® KDA Series DSP Amplifiers offer legendary Klipsch® power and performance in a sleek, high-tech, 1 rack unit solution. The KDA-1000 offers 1000W of class G/H power, for clean, dynamic power in any type of install.
From small residential systems to massive commercial installs, the Klipsch KDA-1000 is designed for maximum install flexibility – offering low impedance and 70V/100V compatibility for distributed line applications. These impedance settings are fully independent from channel to channel – so an installer can run one channel low impedance with another channel 70V/100V for full customization and optimization of their system.
The KDA-1000 boasts fully matrixed 4x4 I/O with fully balanced Phoenix connector inputs and Phoenix speaker outputs capable of connecting to 12-gauge wire. For non-balanced connections, RCA inputs and outputs (throughs) are also built-in, making the KDA-500 one of the most flexible power solutions on the market today.
The myriad I/O, impedance, and acoustic settings are fully matrixed and customizable through the web-based DSP menu - simply plug in a laptop computer to the RJ-45 port on the back panel of the amplifier, enter the assigned IP address into your favourite web browser to pull up the easy-to-use, streamlined menu page. In addition to password protected channel assignments, gain settings, EQ, and limiting, the DSP provides presets for almost every Klipsch speaker on the market – optimizing acoustic performance and power handling for these products with a single click. Accessing the DSP wirelessly with a tablet, smartphone, or computer is also quick and easy when the KDA amplifier is plugged into the network’s wireless router.
General Specs | |
| Channels | 4 |
| Color Finish Name | Black |
| Product Weight (lbs.) | 15 |
| Color | Black |
| Product Weight (kg) | 6.8 |
General | |
| Part Numbers | 120V: 1063258; 230V: 1063261 |
| Amplifier Type | High Efficiency Class G/H |
| Amplifier Power | 1000W Total System Power; 4 x 250W Per Channel |
| Outputs | 4 x Phoenix Speaker Level (up to 12 AWG wire); 4 x RCA Line Level (Throughs) |
| Input Sensitivity | 750mV Balanced, 0dBU |
| Input Impedance | Balanced 40k |
| THD | <1% @ Rated Output |
| Signal-To-Noise | -100dB Below Rated Output |
| Rack Unit | 1RU |
| Product Dimensions | 1.73” x 19.02” x 14.29” (44mm x 483mm x 363mm) |
| Mounting Options | Removable 1RU Rack Ears, Removable Rubber Feet |
| Built From | 2016 |
Inputs | |
| Balanced | 4 x Phoenix Line Level (up to 12 AWG wire) |
| Unbalanced | 4 x RCA Line Level |
Enclosure Material | |
| Front Face | ABS Plastic |
| Case | Machine Formed Steel |
