Many of the world's most recognized brands including Ron Jon Surf Shop and Bloomingdale's use our commercial speakers to create unique memorable experiences for their customers. Do the same for your business with the IC-400-T our smallest 70-volt in-ceiling speaker.Read More
Easy to install and adjust settings
Compact design simplifies low-ceiling mounting
Deep bass with less compression
Horn-loaded for clear sound in any location
Multi-tap transformer for distributed audio
Includes tile bridge for installation in any ceiling
Pairs well with our CA surface mount speakers
Works with Klipsch® KPH-525 Pendant Housing for high/no suspended ceiling installs

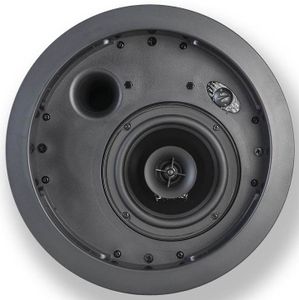

The all-new IC-400-T packs proven materials and wide dispersion horn technology into an installer-friendly, UL-2043 and 1480 certified value-priced loudspeaker with an integrated back can and multi-tap transformer. IC-T Series speakers have been included in several major installations nationally, from Bloomingdale’s in New York City to the Ron Jon Surf Shop in Orlando.
The two-way IC-400-T features a 5-inch woofer, and 1-inch titanium diaphragm compression driver on a 2-inch round Tractrix® Horn for smooth response with constant directivity. A Tractrix port design helps to provide deeper, fuller bass with less compression and distortion. A new, more compact design simplifies low ceiling mounting.
For distributed line applications, the IC-400-T features a 70/100-volt multi-tap transformer. A single rotary switch for the 8-ohm bypass and multi-tap setting is conveniently located under the speaker grille. The IC-400-T is shipped complete with a tile bridge for installation in a suspended ceiling or wherever additional reinforcement of the ceiling material is required.
General Specs | |
| Product Weight (lbs.) | 6.25 |
| Color Finish Name | Black |
| RMS Power Handling (Watts) | 50 |
| Depth (cm.) | 21.1 |
| Product Weight (kg) | 2.83 |
| Color | Black |
| Number of Speakers | 2 |
| Depth (in.) | 8.31 |
General | |
| Frequency Response | 70-20k Hz +/- 4 dB |
| Power Handling | 50 watts (14.5V) cont. |
| Q | 6.3 |
| Sensitivity | 86dB 2.83 V/1M |
| Nominal Impedance | 8 ohms, min 4.2 ohms when switch is set to 8 ohm position |
| Maximum Acoustic Output | 100 dB @ 1M |
| Coverage Angle | 80 degrees |
| Directivity Index | 8 dB |
| Transducers | 5” woofer and 1” titanium diaphragm compression driver on a 2” roundTractrix Horn |
| Enclosure Tuning | Vented via a Tractrix port |
| Input Connections | Terminal Strip |
| Finishes | Black and White |
Transformer Taps | |
| 70V | 15W, 7.5W, 3.8W, 1.9W |
| 100V | 15W, 7.5W, 3.8W |
Dimensions | |
| Thru Hole Width | 9” diameter |
| Overall Width | 10.75” diameter |
| Overall Depth | 8.31” |
| Mounting Depth | 8" |
| Cutout Dimensions | 9.13” diameter |
| Weight | 6.25 lbs. |
