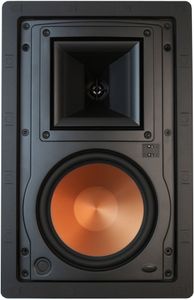

Sophisticated yet uncomplicated, the Klipsch® R-5650-W II in-wall loudspeaker will forever change the way you view or listen to architectural audio. Whether used for home theater or stereo music applications, this high-quality and installer-friendly model challenges the performance of comparable standalone speakers.Read More
1-inch Silk dome tweeter
6.5-inch Cerametallic™ woofer
Horn-loaded technology increases acoustic output while significantly reducing distortion
Pivoting Tractrix® Horn tweeter for clear sound in any location
Treble and midbass attenuation switches and IR receiver knock out
Elegant new, low-profile SlimTrim™ magnetic grille
The Klipsch® R-5650-S II maintains the core technology use of dual 1” Titanium compression drivers (tweeters) mated to dual Tractrix® Horns, vertically stacked and skewed to maximize ambience, combined with a 6.5” Cerametallic™ woofer in a 2-way design. Now with a new low-profile, more elegant grill and refinements to both high frequency and low frequency reproduction, it continues as the perfect choice for surround speakers in either a 5.1 or 7.1 configuration.
With an all new grille, the visible frame size is reduced by 90% and grille depth is reduced by 80% over the previous design, for a more edge-to-edge consistent look that blends in with the wall more attractively. The new aluminum, paintable, magnetic grille attaches tightly and securely with ease to virtually eliminate resonant distortion.
The precise alignment of two controlled dispersion Tractrix Horn tweeters angled opposite of one another yields an incredibly wide dispersion pattern for ambient sound. This feature, perfect for surround sound information, also allows for a speaker with flexible placement compared to competing surround speaker designs.
Combined with the Tractrix Horns, the one-inch, solid-formed, very lightweight metallic diaphragms work in conjunction with precise phasing plugs at the horn throats to create highly efficient drivers with excellent transient response and lack of distortion. The new Linear Travel Suspension on each tweeter assures the most precise diaphragm excursion, increasing high-frequency detail and smoothness.
The solid Aluminum diaphragm, anodized to add stiffness and provide perfect damping, has a new hi-tech look that also delivers increased rigidity for even tighter, more defined bass. The new integrated dust cap further strengthens the cone and helps ventilate the voice coil for increased driver durability.
The perfect blending between drivers for full bandwidth balanced response.
Allows installation of standard, .5” tube-type, IR repeater device.
Provide even pressure against drywall for long-term installation reliability.
For increased mounting flexibility and pre-install marking during new construction.
For meeting building codes and/or reduction of transferred sound between rooms.
General Specs | |
| Product Weight (lbs.) | 7.25 |
| Weight Kilogram | 3.63 |
| Color Finish Name | Black |
| RMS Power Handling (Watts) | 200 |
| Height (cm.) | 36.3 |
| Width (cm) | 23.6 |
| Product Weight (kg) | 3.29 |
| Color | Black |
| Impedance | 8 ohms |
| Number of Speakers | 1 |
| Height (in.) | 14.3 |
| Width (in.) | 9.3 |
General | |
| Frequency Response | 60Hz-23KHz ± 3dB |
| Sensitivity | 92dB @ 2.83V / 1m |
| Nominal Impedance | 8 Ohms Compatible |
| Crossover Frequency | 3400Hz |
| Power Handling | 50W RMS / 200W Peak |
| Recommended Amplifier Power | 100 W |
| High Frequency Driver | Dual 1” (2.54cm) Titanium compression driversmated to a dual Tractrix® Horn array for surround sound |
| Low Frequency Driver | 6.5” (16.51cm) Cerametallic™ cone woofer |
| Enclosure Material/Type | ABS/Infinite baffle, front flush with wall |
| Wire Gauge Accommodated | 12 ga |
| Mounting Depth | 3.75" (9.5cm) |
| Finish | White paintable frame and grille |
| Installation Kit | IK-650-W (sold separately) |
| Built From | 2012 |
