Product Dimensions 3.5"h x 17"w x 12.6"d

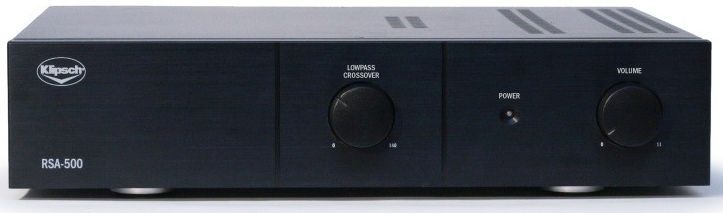

While the RSA-500 subwoofer amplifier was primarily designed for use with the RW-5802 and RW-5101-C in-wall subwoofers, it also features custom settings for the AW-800-SW outdoor subwoofer.Read More
EQ switch for use with different subwoofers
Selectable signal-sensing or voltage triggered auto-on/off circuit
300 watts continuous into 8 ohms or 500 watts continuous into 4 ohms
Line and speaker level inputs
Rack ears included
This high-powered device will drive up to two of any of these subwoofer modules and delivers 300 watts into an 8-ohm load (one subwoofer module) and 500 watts into a 4-ohm load (two subwoofer modules). It also comes with rack ears for fast and secure placement into any standard 19-inch rack.
To keep end users from inadvertently tampering with performance levels, the majority of the RSA-500's controls are housed on its rear panel. The fuse is also included on the back for quick and easy replacement. A detachable IEC power cord allows for the simple removal and reinstallation of the entire amplifier unit. The RSA-500 was also designed to “play nice” by offering standard input/output connectivity that will support any type of system.
General Specs | |
| Depth (in.) | 12.6 |
| Height (in.) | 3.5 |
| Impedance | 4; 8 Ohms |
| Width (in.) | 17 |
| Channels | 1 |
| Weight Kilogram | 9.53 |
| Analog Audio(RCA) Input | 1 |
| Manufacturer Warranty | 2 Year Parts & Labor |
| Color Finish Name | Black |
| Product Weight (lbs.) | 18 |
| Color | Black |
| Width (cm) | 43.2 |
| Height (cm.) | 8.89 |
| Depth (cm.) | 32 |
| Product Weight (kg) | 8.16 |
General | |
| Frequency Response | 20Hz-1kHz ± 3dB |
| Enclosure Type | Use only with RW-5802, RW-5101-Cand AW-800-SW subwoofer enclosures (either one or two) |
| Amplifier | BASH Hybrid |
| Auto Power On | 2 second ON delay, 15 minute OFF delay |
| Low Pass Crossover | Continuously variable from 40-120Hz, |
| Inputs | 2 Gold-plated speaker binding posts, 2 Gold-plated RCA phono jacks plus single LFE |
| Outputs | 2 Gold-plated unfiltered RCA phono jacks plus single LFE |
| Phase | Switchable between 0 and 180 degrees |
| Dimensions | 3.5" (8.9cm) H x 17" (43.2cm) W x 12.6" (32cm) D (without rack ears) |
| Weight | 18 lbs. (8.2kg) |
| Finish | Black anodized aluminum face plate |
| Voltage | 110/120 VAC 60Hz |
| Key Features | Selectable EQ, Speaker Level In,Low voltage trigger, rack ears included |
Amplifier Power | |
| FTC Rated Power | 300W into 8 ohms, 500W into 4 ohms, 20Hz-1kHz @ <1.5% THD |
| Dynamic Power | 875W into 8 ohms, |
