Product Dimensions 17.75"h x 14.69"w x 19.88"d

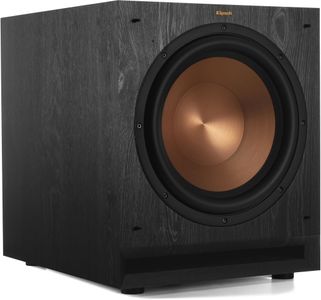

The SPL-120NA subwoofer is a step up from the Klipsch® Reference series. Featuring a high-efficiency Class-D amplifier and spun copper Cerametallic™ woofer, the Klipsch® SPL series subwoofers deliver best-in-class low frequency output.Read More
12" Spun Copper Cerametallic™ Woofers
Bass-Reflex via Exclusive Front-Firing Internal Flare Port
Class D Amplifier with 300W RMS / 600W Peak
Premium Scratch-Resistant Finish
Shock-absorbing rubber feet, steel grille posts and a woven cloth grille for a premium look and feel
Dimensions: 17.75” x 14.7” x 19.9”
The built-in, high efficiency amplifier features an analog preamp design, which maintains the original signal path for cleaner, true-to-source reproduction. The Class D output stage ensures maximum efficiency for maximum output, detail, and low frequency power.
Cerametallic™ woofers are exceptionally light and extremely rigid, providing remarkable low frequency response with minimal cone breakup and distortion for higher, cleaner output using less amplifier power.
Klipsch® Cerametallic™ cones are matted to a dual-layer, copper-wound voice coil for exceptional conductivity.
Reference Premiere woofers are housed in a non-resonating, stamped-steel basket that’s secured to a large magnet motor for exceptional efficiency and low distortion, and matched to our horn-loaded tweeters for optimal acoustic execution.
Klipsch® SPL subwoofers leverage proprietary internal-flare geometry that minimizes port noise for clean undistorted low frequencies. The front-firing design allows for placement flexibility to reduce unwanted resonance from your walls or furniture behind the subwoofer.
Low Pass Crossover and Variable Phase control allows you to tune the subwoofer to your Klipsch® speakers and to your room, establishing the ideal level of bass. Line Level / LFE RCA inputs ensure compatibility with home theater receivers.
Both the RCA and wireless inputs can be utilized, giving you the ability to use a single subwoofer with multiple system in the same room. For example, you can use the wireless input for your home theater set up and the RCA input for your 2-channel system, without needing to switch inputs when changing between systems.
Klipsch® SPL subwoofers feature a scratch resistant ebony finish that looks like real wood and covers the entire cabinet. Shock-absorbing rubber feet, steel grille posts and a woven cloth grille give the SPL subwoofers a premium look and feel.
General Specs | |
| Product Weight (lbs.) | 45 |
| Color | Black |
| Depth (in.) | 19.88 |
| Width (in.) | 14.69 |
| Height (in.) | 17.75 |
| Firing Direction | Side |
| Color Finish Name | Ebony |
| RMS Power Handling (Watts) | 600 |
| Width (cm) | 37.3 |
| Height (cm.) | 45.1 |
| Depth (cm.) | 50.5 |
| Product Weight (kg) | 20.41 |
| Subwoofer Size | 12" |
General | |
| Frequency Response | 24Hz - 125Hz |
| Maximum Acoustic Output | 118dB |
| Amplifier Type | Class D with Analog Preamp Stage |
| Amplifier Power | 300W RMS / 600W Peak |
| Woofer | 12” Long-Throw Cerametallic |
| Enclosure Material | MDF |
| Enclosure Type | Bass Reflex via Front-Firing Slot Port |
| Inputs | Dual RCA/LFE Line In, WA-2 Wireless Port |
| Finish | Ebony Vinyl |
| Built From | 2018 |
